Cluster Yaml Generation

Use the environment variables created for the vcenter previously on vSphere Environment Variables

Bash

source /etc/capi-vsphere.env

Network ResourceSet creation for the Network inside the clusters.

Download the calico manifest file

Bash

curl -fsSLo calico.yaml https://docs.tigera.io/calico/latest/manifests/calico.yaml

Enable CALICO_IPV4POOL_CIDR

Bash

sed -i 's#192\.168\.0\.0/16#10.244.0.0/16#g' calico.yaml
sed -i 's/# - name: CALICO_IPV4POOL_CIDR/- name: CALICO_IPV4POOL_CIDR/' calico.yaml

sed -i 's/#   value: "10.244.0.0\/16"/  value: "10.244.0.0\/16"/' calico.yaml

Note

Here 10.244.0.0/16 is defined on the environment variables as well.

Disable IP (best for VMWare Environments)

Bash

sed -i 's/"Always"/"Never"/' calico.yaml

Enable VXLAN overlay (recommended for vSphere networks)

Bash

sed -i '/CALICO_IPV4POOL_IPIP/a\            - name: CALICO_IPV4POOL_VXLAN\n              value: "Always"' calico.yaml

Verify the result
Bash
```
grep -n CALICO_IPV4POOL calico.yaml
```

Recreate the ConfigMap

Bash

kubectl create configmap calico-manifest -n default --from-file=calico.yaml --dry-run=client -o yaml | kubectl apply --server-side -f -

Create the cluster resource set: calico-crs.yaml

YAML

apiVersion: addons.cluster.x-k8s.io/v1beta2
kind: ClusterResourceSet
metadata:
  name: calico-crs
  namespace: default
spec:
  strategy: Reconcile
  clusterSelector:
    matchLabels:
      cni: calico
  resources:
    - kind: ConfigMap
      name: calico-manifest

Apply the crs created above
Bash
```
kubectl apply -f calico-crs.yaml
```

Metrics Server Integration for Resources

Download the Metrics server latest manifest file.

Bash

wget https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml -O metrics-server.yaml

Update the manifest file to add the insecure tls details

YAML

- --kubelet-insecure-tls
- --kubelet-preferred-address-types=InternalIP,Hostname,InternalDNS,ExternalDNS,ExternalIP

Tip

Create the configmap for the metrics server

Bash

kubectl create configmap metrics-server-manifest -n default --from-file=/root/capicluster/addons/metrics-server/metrics-server.yaml --dry-run=client -o yaml | kubectl apply --server-side -f -

Create the Cluster Resource Defination for the deployment in metrics-server-crs.yaml

YAML

apiVersion: addons.cluster.x-k8s.io/v1beta2
kind: ClusterResourceSet
metadata:
  name: metrics-server-crs
  namespace: default
spec:
  strategy: Reconcile
  clusterSelector:
    matchLabels:
      metrics: enabled
  resources:
    - kind: ConfigMap
      name: metrics-server-manifest

Apply the Cluster Resource Set

Bash

kubectl apply -f metrics-server-crs.yaml

Cluster Generation

Generate the cluster from the command:

Bash

clusterctl generate cluster "${CLUSTER_NAME}" \
 --kubernetes-version "${KUBERNETES_VERSION}" \
 --control-plane-machine-count "${CONTROL_PLANE_MACHINE_COUNT}" \
 --worker-machine-count "${WORKER_MACHINE_COUNT}" \
 --infrastructure vsphere \
| yq '

  # -------------------------
  # Cluster labels for addons
  # -------------------------
  (select(.kind=="Cluster" and .metadata.name==strenv(CLUSTER_NAME)).metadata.labels.cni) = "calico" |
    (select(.kind=="Cluster" and .metadata.name==strenv(CLUSTER_NAME)).metadata.labels.metrics) = "enabled" |

  # -------------------------
  # Kubernetes networking
  # -------------------------
  (select(.kind=="Cluster" and .metadata.name==strenv(CLUSTER_NAME)).spec.clusterNetwork.pods.cidrBlocks) =
  [strenv(POD_CIDR)]
  |

  (select(.kind=="Cluster" and .metadata.name==strenv(CLUSTER_NAME)).spec.clusterNetwork.services.cidrBlocks) =
  [strenv(SERVICE_CIDR)]

  |

  # -------------------------
  # VIP endpoint
  # -------------------------
  (select(.kind=="VSphereCluster" and .metadata.name==strenv(CLUSTER_NAME))
    .spec.controlPlaneEndpoint.host) =
    strenv(CONTROL_PLANE_ENDPOINT_HOST)

  |

  (select(.kind=="KubeadmControlPlane" and .metadata.name==strenv(CLUSTER_NAME))
    .spec.kubeadmConfigSpec.files[]
      | select(.path=="/etc/kube-vip.hosts").content) =
  ("127.0.0.1 localhost kubernetes\n" +
   strenv(CONTROL_PLANE_ENDPOINT_IP) + " " +
   strenv(CONTROL_PLANE_ENDPOINT_HOST) + "\n")

  |

  # -------------------------
  # Control plane network
  # -------------------------
  (select(.kind=="VSphereMachineTemplate"
    and .metadata.name==strenv(CLUSTER_NAME))
    .spec.template.spec.network.devices[0]) = {
      "networkName": strenv(VSPHERE_NETWORK),
      "dhcp4": false,
      "gateway4": strenv(NODE_GATEWAY),
      "nameservers": [
        strenv(NODE_DNS_1),
        strenv(NODE_DNS_2),
        strenv(NODE_DNS_3)
      ],
      "addressesFromPools": [{
        "apiGroup": "ipam.cluster.x-k8s.io",
        "kind": "InClusterIPPool",
        "name": strenv(IP_POOL_NAME)
      }]
  }

  |

  # -------------------------
  # Worker network
  # -------------------------
  (select(.kind=="VSphereMachineTemplate"
    and .metadata.name==(strenv(CLUSTER_NAME) + "-worker"))
    .spec.template.spec.network.devices[0]) = {
      "networkName": strenv(VSPHERE_NETWORK),
      "dhcp4": false,
      "gateway4": strenv(NODE_GATEWAY),
      "nameservers": [
        strenv(NODE_DNS_1),
        strenv(NODE_DNS_2),
        strenv(NODE_DNS_3)
      ],
      "addressesFromPools": [{
        "apiGroup": "ipam.cluster.x-k8s.io",
        "kind": "InClusterIPPool",
        "name": strenv(IP_POOL_NAME)
      }]
  }

' > cluster.yaml

Apply the yaml generated

Bash

kubectl apply --dry-run=server -f cluster.yaml

kubectl apply -f cluster.yaml

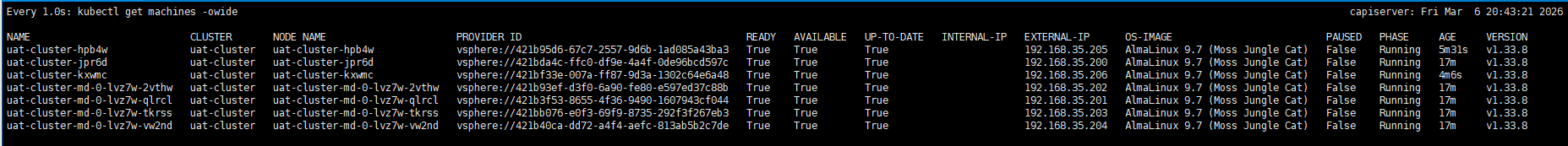

kubectl get machines -owide

Tip

This would take around 10 - 15 minutes for the cluster configurations.

Verifications

Download the kubeconfig file of the cluster that is created.

Bash

clusterctl get kubeconfig uat-cluster > uat-cluster.kubeconfig

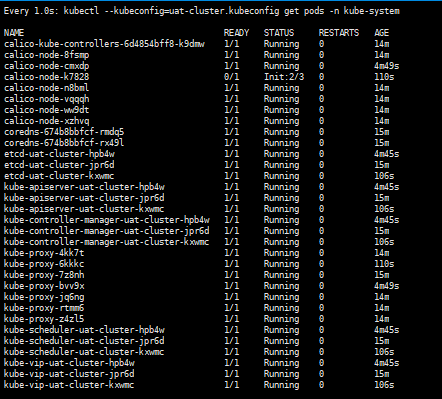

Get the details of the pods running on the cluster

Bash

kubectl --kubeconfig=uat-cluster.kubeconfig get pods -n kube-system

Could Verify the new VMs created on the vCenter as well:

Cluster Health Verification

Verify cluster components after creation.

```bash
kubectl get nodes -o wide --kubeconfig= kubectl get pods -A --kubeconfig= kubectl get machines -A kubectl get vspheremachines -A

Expected results:

All nodes Ready
Calico pods running
CoreDNS running
kube-vip running
vSphere CPI running
Metrics Server pods running
